H-steriScopeTM |Single-use Bronchoscope, Zero type

H-steriScope<sup>TM</sup> |Single-use Bronchoscope, Zero type

Working Channel : 0mm
Insertion Tube : 2.2mm
Bending Section：U210°/D210°
Working Length：600mm
Field of View：110°+/-5%
Depth of View: 3-50mm
Illumination Method: LED
Suction Connector: Ø 7+/-1
Method of Sterilization: ETO

We value a detailed, functional design

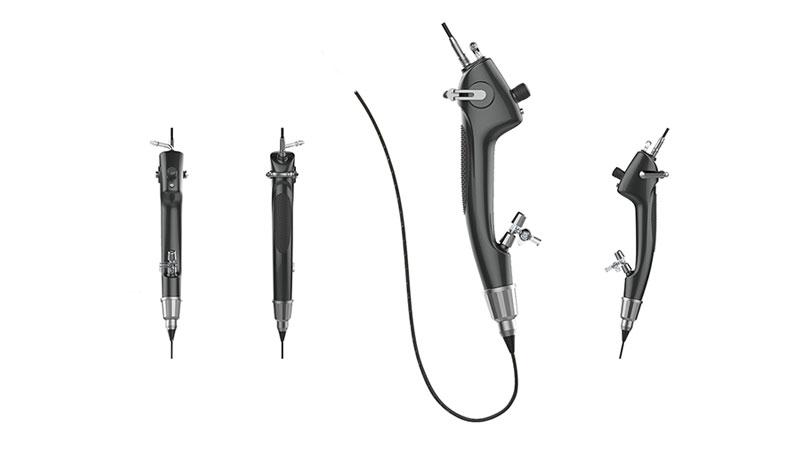

    1. H-steriScope<sup>TM</sup> |Single-use Bronchoscope, Zero type
    2. Our bronchoscope features a ±210° deflection, whereas the deflection of a conventional bronchoscope is 210°/130°. In addition, the bending radius of our bronchoscope is smaller than 10mm, giving it an unparalleled navigation and viewing range for a convenient, effective diagnostic examination.
    1. H-steriScope<sup>TM</sup> |Single-use Bronchoscope, Zero type
    2. With an angulation lock on the control lever, the angulation is lockable when sliding to the left during usage. This allows for fixed navigation and viewing.
    1. H-steriScope<sup>TM</sup> |Single-use Bronchoscope, Zero type
    2. With a rotation control ring, the handle end can be rotated left or right up to 120 degrees, allowing for easy operation.
    1. H-steriScope<sup>TM</sup> |Single-use Bronchoscope, Zero type
    2. The insertion tube features an excellent deflection, allowing for a smooth tube insertion.
    1. H-steriScope<sup>TM</sup> |Single-use Bronchoscope, Zero type
    2. With an excellent coaxiliaty, the rotation between the tip and insertion tube is synchronized.

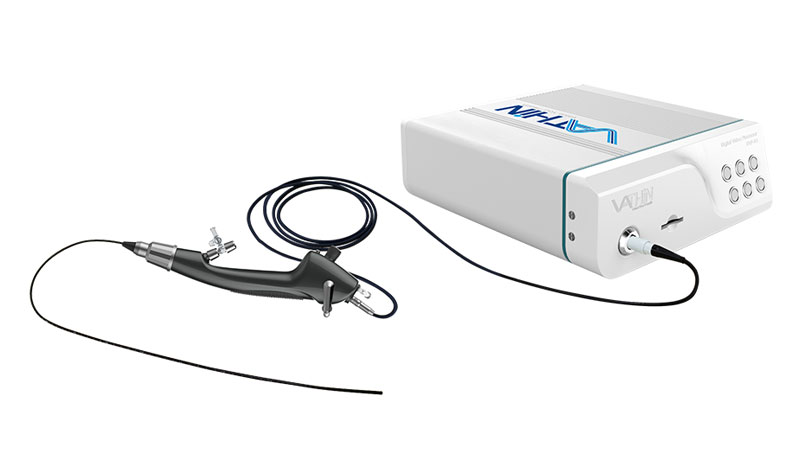

High-definition endoscope video processor is also available upon request.

Click hereto learn more about the video processor.
